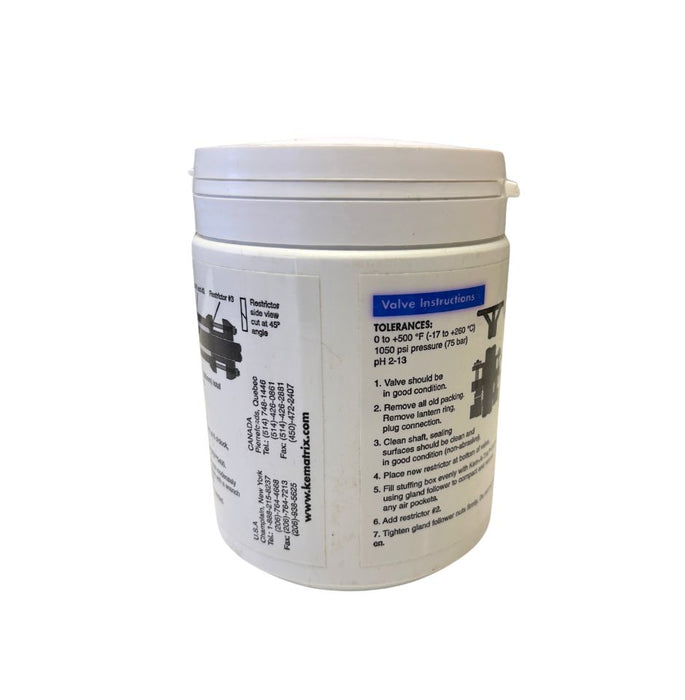

Injectable Pump Packing IFS 5400 USDA H1

White Premium Grade (750 ML CAN/ 20 KG BUCKET)

Injectable Fluid Seal Features:

• • • Multipurpose - used in the food service and paper industry
    • Replaces mechanical seals and braided packing in Pumps and Valves.
    • One size fits all, compatible with both rotary and reciprocating shafts.
    • Self-cooling, self-lubricating, and no need for seal water or coolant.
    • Nearly zero leakage, topped up on-line, and protects sleeves/shafts.
    • Costs 1/10th of mechanical seals and reduces energy costs by 18–50%.
    • Minimize wastewater treatment needs.

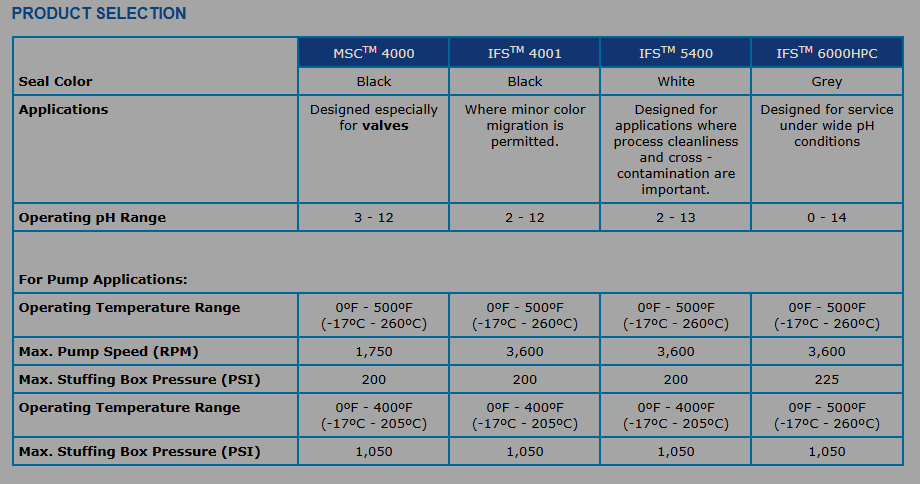

Technical Specification:

• • • Application: Ensure process cleanliness and prevent cross-contamination.
    • Operating pH Range: 2–13
    • Max Speed: 3600 RPM
    • Pump Temperature Range: 0°F to 500°F (-17°C to 260°C)
    • Max Pump Stuffing Box Pressure: 200 PSI
    • Valve Temperature Range: 0°F to 400°F (-17°C to 205°C)
    • Max Valve Stuffing Box Pressure: 1050 PSI

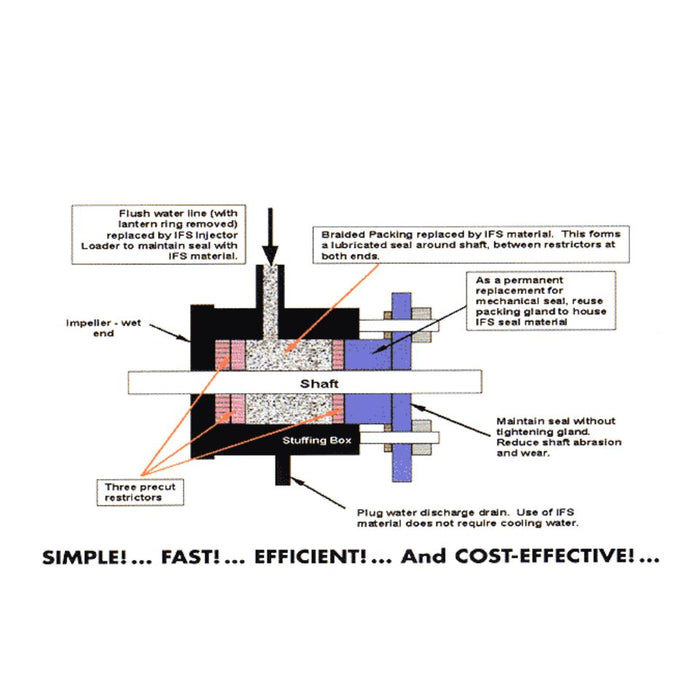

The Injectable Fluid Seal, crafted from synthetic fibers and premium lubricants, creates a low-temperature lubricated seal without compression or wear, removing the need for cooling or flushing water. Leaks can be topped up online with no downtime.

The image is not an exact representation of the product
