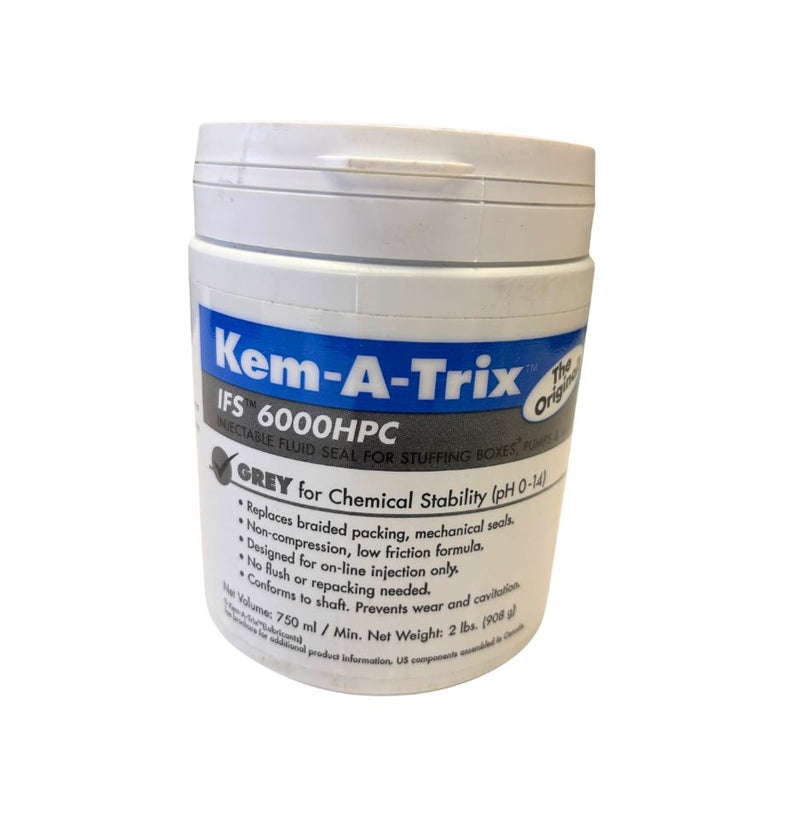

Injectable Pump Packing IFS 6000HPC

Grey Premium Grade (750 ML CAN/20 KG BUCKET)

Injectable Fluid Seal Features:

• • • Multipurpose work with rotating, reciprocating, and centrifugal shafts.
    • Replaces mechanical seals and braided packing in Pumps and Valves.
    • One size fits all, compatible with both rotary and reciprocating shafts.
    • Self-cooling, self-lubricating, and no need for seal water or coolant.
    • Nearly zero leakage, topped up on-line, and protects sleeves/shafts.
    • Costs 1/10th of mechanical seals and reduces energy costs by 18–50%.
    • Minimize wastewater treatment needs.

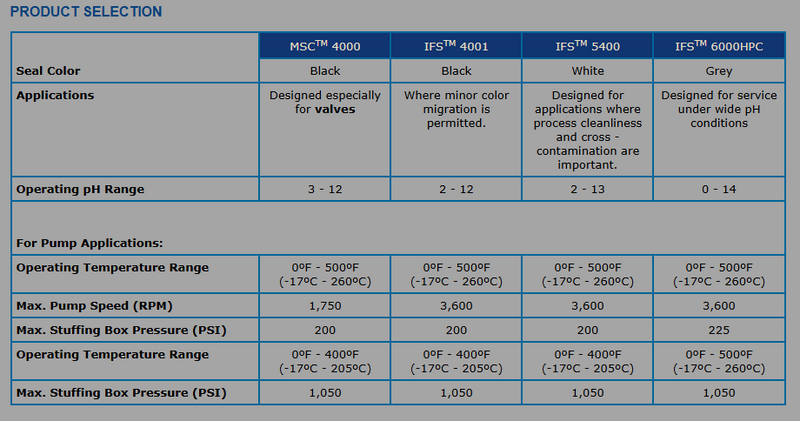

Technical Specification:

• • • Application: Designed for service under wide pH conditions.
    • Operating pH Range: 0–14
    • Max Speed: 3600 RPM
    • Pump Temperature Range: 0°F to 500°F (-17°C to 260°C)
    • Max Pump Stuffing Box Pressure: 225 PSI
    • Valve Temperature Range: 0°F to 500°F (-17°C to 260°C)
    • Max Valve Stuffing Box Pressure: 1050 PSI

The Injectable Fluid Seal, crafted from synthetic fibers and premium lubricants, creates a low-temperature lubricated seal without compression or wear, removing the need for cooling or flushing water. Leaks can be topped up online with no downtime.

The image is not an exact representation of the product
